Extra Heavy Duty Precision Lathe Machine

Product Brochure

Extra Heavy Duty Precision Lathe Machine

475000 INR/Unit

Get a Price/Quote

Product Details:

Product Type Horizontal
Material Metal
Cutting Thickness Different Available Millimeter (mm)
CNC Or Not Normal
Automatic Grade Semi Automatic
Control System Human Machine Interface
Max. Swing Diameter 975 Millimeter (mm)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Extra Heavy Duty Precision Lathe Machine Price And Quantity

Minimum Order Quantity 1 Unit
Price 475000 INR/Unit

Extra Heavy Duty Precision Lathe Machine Product Specifications

Color GREY OR GREEN
Warranty Yes
Cutting Thickness Different Available Millimeter (mm)
Feature Lower Energy Consumption Simple Control High Efficiency Low Noise High Performance Stable Performance
Control System Human Machine Interface
Weight (kg) 2500 approx Kilograms (kg)
Material Metal
Voltage 220-440 Horsepower (HP)
CNC Or Not Normal
Automatic Grade Semi Automatic
Product Type Horizontal
Max. Swing Diameter 975 Millimeter (mm)

Extra Heavy Duty Precision Lathe Machine Trade Information

Supply Ability 5 Unit Per Month
Delivery Time 30 Days
Packaging Details Lathe Machine is properly plastic wrapped with Stretch Rolls & then Duly Gunny Packed Completely for Safety in Transport.
Main Domestic Market All India

Product Description

SALIENT FEATURES OF "SONA" BEST GRADE PRECISION EXTRA HEAVY DUTY LATHE MACHINE.

Induction Hardened Bed ways.
Design of the Bed is extremely heavy & rigid. Bed is robust &sturdy in construction for more strength & accurate workmanship & toavoid vibration.
Legs are extremely heavy & robust. Specially we have given extra metal in Legs& made necessary changes in foundry patterns to with stand Heavy Load.
Main Spindle is Hardened. Degreeof the Spindle is grind finished. Main Spindle is very rigid & accurate& made out of alloy steel.
Main Spindle is mounted on 2 Precision Taper Roller Bearings, forprecision machining, accuracy & workmanship, & to withstand heavy load.
High Quality Helical Gears are fitted. Double knobs will be given in MainHelical gear. High quality Tumbler Gears are fitted & made out of steelmaterial.
Tailstock Spindle is Hardened having Internal & External DegreeGrinding done. Extra Heavy duty tailstock Spindle 3 Dia. Is fitted to giveefficient support to the job.
2 nos. bearings will be given in Tailstock Screw Rod for easy travel.
Tailstock Moving Arrangement will be given for Easy Movement of HeavyTailstock. It will be extremely useful for Operator.
Hand Scrapping is done on Headstock, Saddle, Surface, Compound Set, Toolpost, Tailstock etc for proper & rigid seating of Component which avoidsvibration.
All Screw nuts are made out of Gun Metal for minimum Wear & Tear.
Cross-slide Screw Rod is 28 mm thick with long heavier type Gun MetalNut. Provision for 2 bearings is there in Screw Rod for easy & smoothtravel.
Lead Screw is 2 Dia x 2 TPI. Provision for bearings & check nutswill be given to avoid play in lead screw.
Tool Post is 7 Heavier type.
Panja is Specially Designed heavier type.
Counter Shaft is also heavy with 6207 Bearings either SKF, NTN OR NSKJAPAN, OR GERMAN MAKE.
Lead Screw supports are given in our "SONA Lathes.
Tailstock Moving Arrangement is given for Easy movement of Tailstock.

FAQs of Sona Extra Heavy Duty Precision Lathe Machine:

Q: What is the voltage range of the Sona Extra Heavy Duty Precision Lathe Machine?
A: The voltage range of the lathe machine is 220-440 Volt (v).

Q: Does the machine come with a warranty?
A: Yes, the machine comes with a warranty for added customer satisfaction.

Q: What material is the lathe machine made of?
A: The lathe machine is made of high-quality metal for durability and reliability.

Q: Is the machine easy to operate?
A: Yes, the machine features a human machine interface control system, making it user-friendly.

Q: What cutting thickness options are available for the machine?
A: The machine offers different cutting thickness options in millimeters (mm), providing flexibility and precision.

Technical Details

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Precision Lathe Machine' category

Heavy Duty Precision Lathe Machine Price : 235000 INR/Unit Minimum Order Quantity : 1 Feature : Lower Energy Consumption, High Efficiency, Simple Control, High Performance, Stable Performance, Low Noise Control System : Human Machine Interface CNC Or Not : Normal Warranty : Yes Weight (kg) : 1350 Kilograms (kg) Automatic Grade : Semi Automatic Max. Swing Diameter : 900 Millimeter (mm) Product Type : Horizontal Dimension (L*W*H) : 2540 x 1450 x 1300 Millimeter (mm) Color : GREY OR GREEN Material : Metal Voltage : 220440 Volt (v)

Send Inquiry

Sona Light Duty Precision Lathe Machine Price : 91000 INR/Unit Minimum Order Quantity : 1 Control System : Human Machine Interface CNC Or Not : Normal Warranty : Yes Weight (kg) : 475 Kilograms (kg) Automatic Grade : Semi Automatic Max. Swing Diameter : 315 Millimeter (mm) Product Type : Horizontal Dimension (L*W*H) : 1625 X 900 Millimeter (mm) Color : DOUBLE COLOR IVORY & BLUE, GREY & GREEN Material : Metal Voltage : 220440 Volt (v)

Send Inquiry

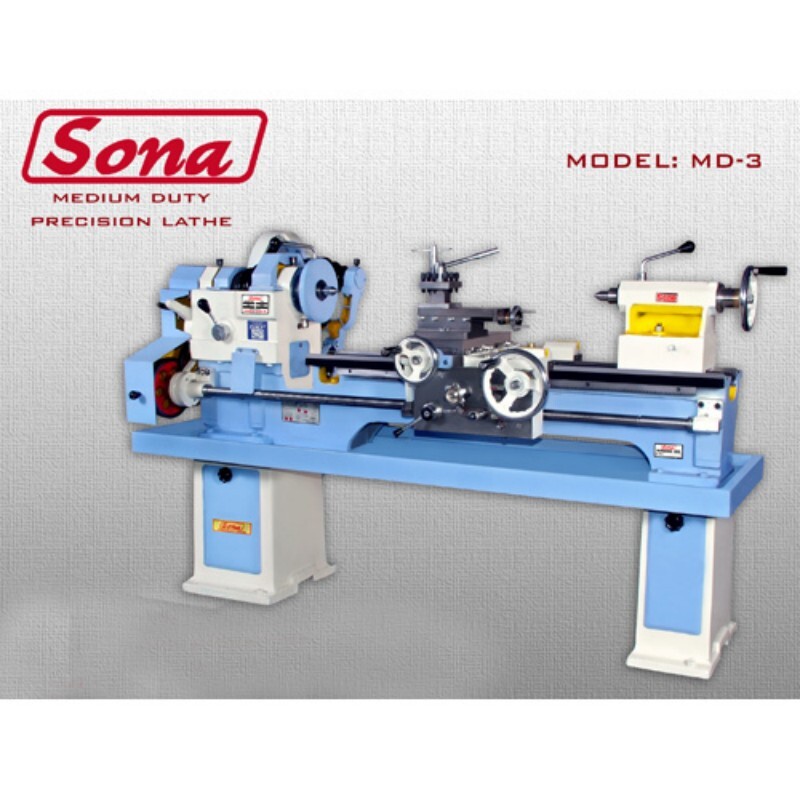

Sona Medium Duty Precision Lathe Machine Price : 160000 INR/Unit Minimum Order Quantity : 1 Feature : Lower Energy Consumption, High Performance, Low Noise, Stable Performance, High Efficiency, Simple Control Control System : Human Machine Interface CNC Or Not : Normal Warranty : Yes Weight (kg) : 775 Kilograms (kg) Automatic Grade : Semi Automatic Max. Swing Diameter : 420 Millimeter (mm) Product Type : Horizontal Dimension (L*W*H) : 2125 X 1000 X 1295 Millimeter (mm) Color : DOUBLE COLOR IVORY & BLUE, GREY Material : Metal Voltage : 220440 Volt (v)
